The world of PC building is one where aesthetics meet functionality, and the DarkFlash DY470 ATX PC case stands out as a shining example of this balance. Offering a combination of sleek design, spacious interiors, and efficient cooling capabilities, the DarkFlash DY470 is a compelling choice for both novice builders and seasoned enthusiasts.
Design
DarkFlash has established itself as a reliable brand in the PC hardware market, known for its innovative designs and quality products. The DY470 model is a testament to their commitment to providing top-tier PC cases that cater to the needs of modern builders. This case is designed to offer a panoramic view of your components while ensuring excellent airflow and cooling efficiency.
Upon unboxing the DarkFlash DY470, one is immediately struck by its modern and stylish design. The case is packaged securely, with high-density foam protecting its delicate tempered glass panels. The package includes all necessary screws and stand-offs, a microfiber cloth for cleaning the glass, and zip ties for cable management.

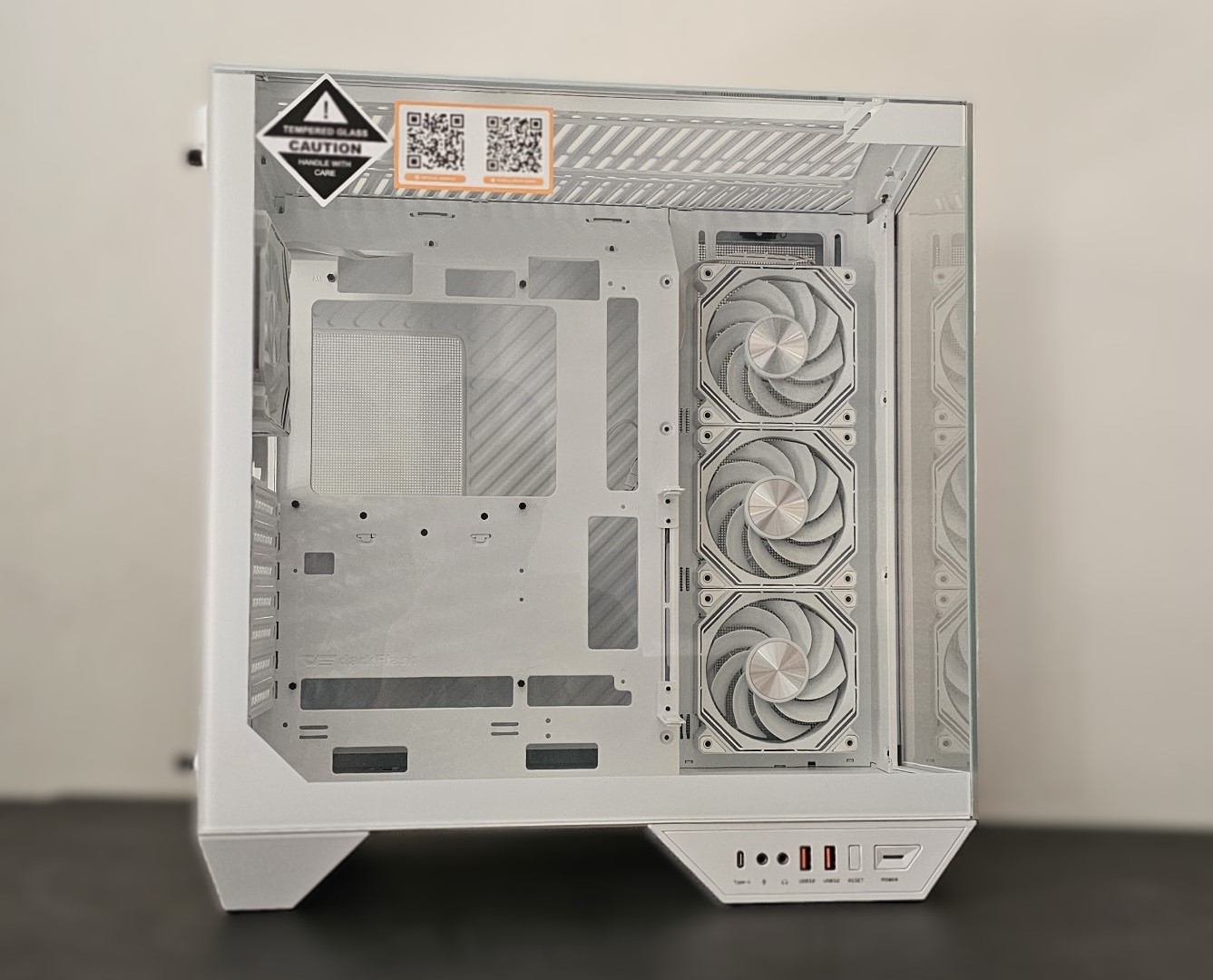

While the package itself did not include a manual, a quick scan of the QR code on the tempered glass downloads a digital manual. The case’s design is dominated by its panoramic tempered glass panels on three sides, providing an unobstructed view of the interior. This design not only enhances the visual appeal but also allows builders to showcase their components and RGB lighting setups.
Technical Specifications
The DarkFlash DY470 PC case supports ATX, MicroATX, and Mini-ITX motherboards, and is designed as a panoramic tower made of steel (0.7 mm SPCC) and tempered glass. It provides ample clearance for components, with space for a 175 mm CPU cooler, a 410 mm horizontal GPU (or 390 mm vertical), and a 200 mm PSU.
The case includes 2x 2.5 in PCIe expansion drive bays and supports dual 360 mm radiators or up to ten 120 mm fans for efficient cooling. Its I/O ports feature 2x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C, and separate headphone and microphone jacks. The case’s dimensions are 497 mm in length, 298 mm in width, 473 mm in height, and it weighs 9.97 kg.
Build Quality
The DY470 features a minimalist yet striking external design. The tempered glass panels are complemented by a sturdy steel frame, ensuring durability and stability. The front panel is sleek, with a subtle DarkFlash logo at the bottom. The bottom area houses the I/O ports, including a Type-C port for fast data transfer, audio jacks, dual USB Type-A ports, and power/reset buttons.
The rear panel is functional, with perforations for side-mounted fans, PSU, and hard drive bays. The overall build quality is impressive, with no flex or weak points in the frame, giving it a robust feel.
Internal Design and Layout
The internal layout of the DY470 is designed for optimal airflow and ease of installation. The back-connect motherboard layout ensures that cables are neatly managed, with plenty of room for routing and hiding them. The case supports flexible GPU mounting with both horizontal and vertical PCIe slots, allowing builders to choose their preferred GPU orientation.
The spacious interior can accommodate high-end components, including large GPUs and tall CPU coolers. The case also offers multiple mounting options for radiators and fans, supporting dual 360 mm radiators or up to ten 120 mm fans, making it ideal for custom water cooling setups.
Cooling and Airflow
One of the standout features of the DarkFlash DY470 is its cooling capability. As mentioned earlier, the case supports extensive fan and radiator configurations, ensuring that your components remain cool even under heavy loads. The perforated rear panel and the top and bottom vents provide ample airflow, while the detachable dust cover beneath the motherboard tray helps keep the interior clean.
The case’s design ensures that there are no airflow obstructions, with strategically placed vents and fan mounts. This thoughtful design will translate to excellent thermal performance, keeping temperatures low and ensuring system stability.
Installation Process
Building a PC in the DarkFlash DY470 is a straightforward and enjoyable process. The spacious interior and well-placed cable management features make installation a breeze. The case includes several features to assist with the build process, such as removable drive trays, tool-less drive installation, and ample cable routing holes.
The case also comes with stand-off thumb screws and an internal speaker, adding convenience during the build. Whether you are a first-time builder or a seasoned pro, the DY470 offers a user-friendly experience that simplifies the assembly process.
Verdict
The DarkFlash DY470 ATX PC case is a remarkable blend of aesthetics, functionality, and performance. Its panoramic design, combined with excellent cooling capabilities and ease of installation, makes it a top choice for PC builders of all levels. Whether you’re looking to create a high-performance gaming rig or a visually stunning showpiece, the DY470 will deliver on all fronts.
Price: AED 699
